Fine pitch

Fine pitch

Fine Pitch LED Three-in-One

Ultra High Definition Fine Pitch LED LX-lite Series --LX-lite Series(P1.2/1.5/1.8)

Main Parameters

400-450

400-450

Brightness(Nit)

6000:1

6000:1

Contrast Ratio

14

14

Grayscale (Bit)

≥90% NTSC

≥90% NTSC

Color Gamut

Three-in-one design, high efficiency more stable

Three-in-one innovative design of power supply, Hub card, and receiving card, which is highly integrated and operates more stably.

Ultimate display, restore the real world

3840Hz refresh, quick response, clear display. Flash function auto calibration, display the accurate color.

Ultra-thin, with the Led display certified by 3C/CANS.

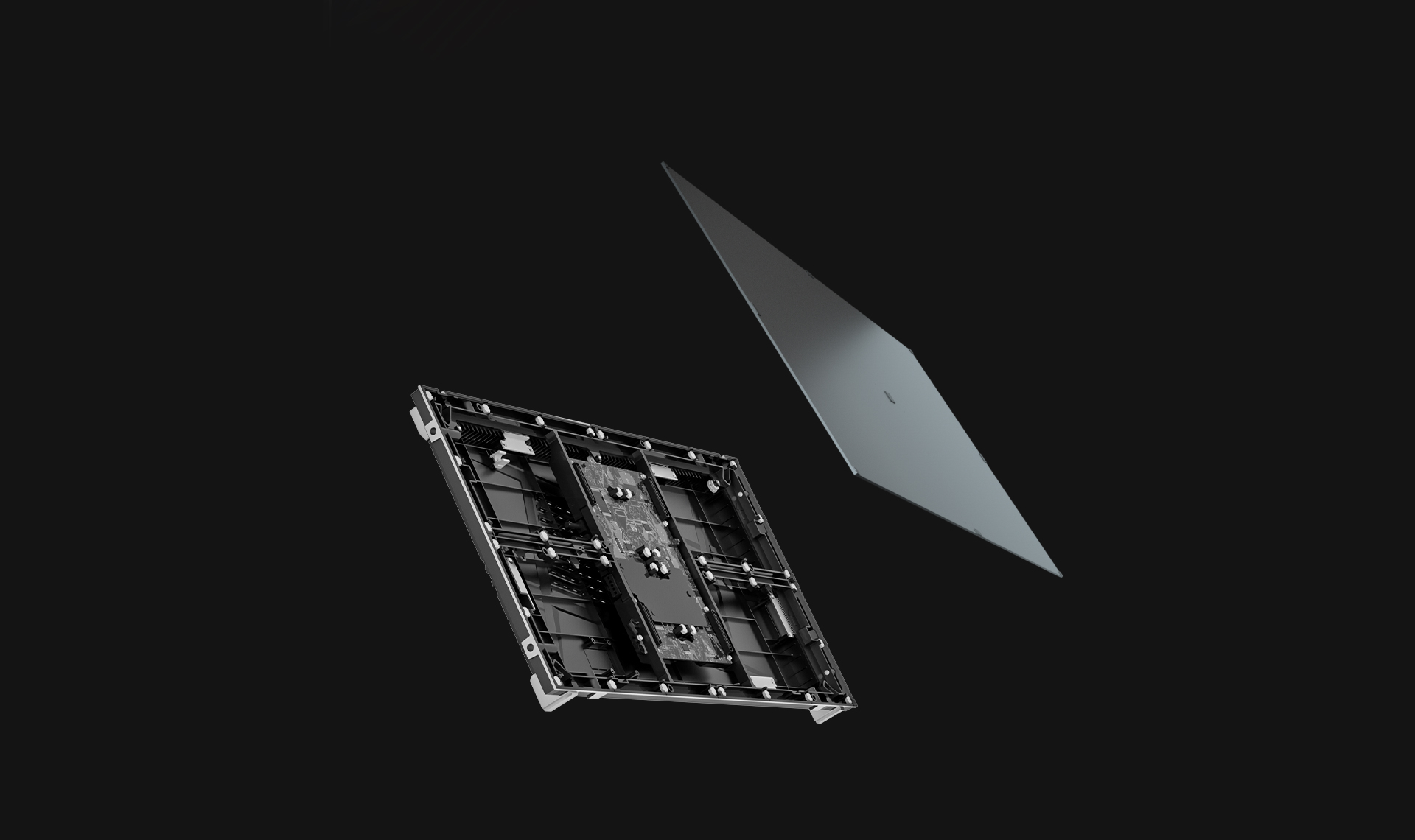

The die-casting aluminum cabinet is only 3.5kg in weight and 25mm in thickness,
with concealed wiring for a neater look, and it is certified for the whole led display.

Low power consumption and high performance

The maximum power of a single cabinet is 75W, ensuring visual effects while saving energy and being environmentally friendly.

Automatic Flash correction, saving effort and worry-free.

Automatically read and upload screen calibration data to ensure consistency
of the screen after module replacement, greatly improving the display effect.

The 2:1 display ratio brings an excellent visual experience.

With a standard size of 640x320mm and a 2:1 aspect ratio, the field of view is wider and more comfortable to watch.

Diversified installation methods provide more choices.

Supports a variety of installation solutions, including tabletop installation, wall-mounted installation, right-angle installation, ceiling installation, and magnetic installation, to meet the needs of different installation environments
