TA Series is an energy-efficient outdoor fixed LED display designed for applications requiring long-term operation, stable performance, and reduced power consumption. Featuring advanced thermal management, common cathode energy-saving technology, and IP65 protection, it delivers reliable performance in various outdoor environments.

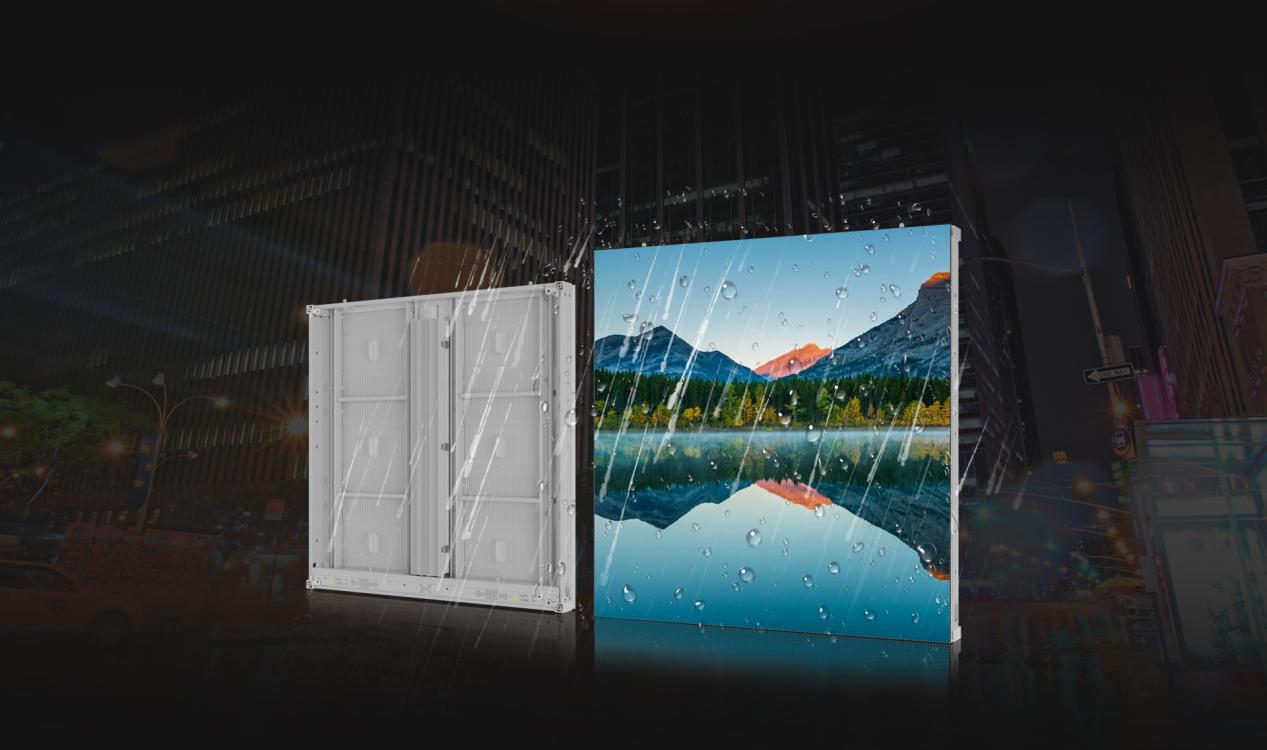

TA Series is designed for outdoor environments with an IP65 protection rating, providing reliable resistance against dust and water. Combined with a full aluminum cabinet structure, it ensures stable operation and effective heat management in different weather conditions.

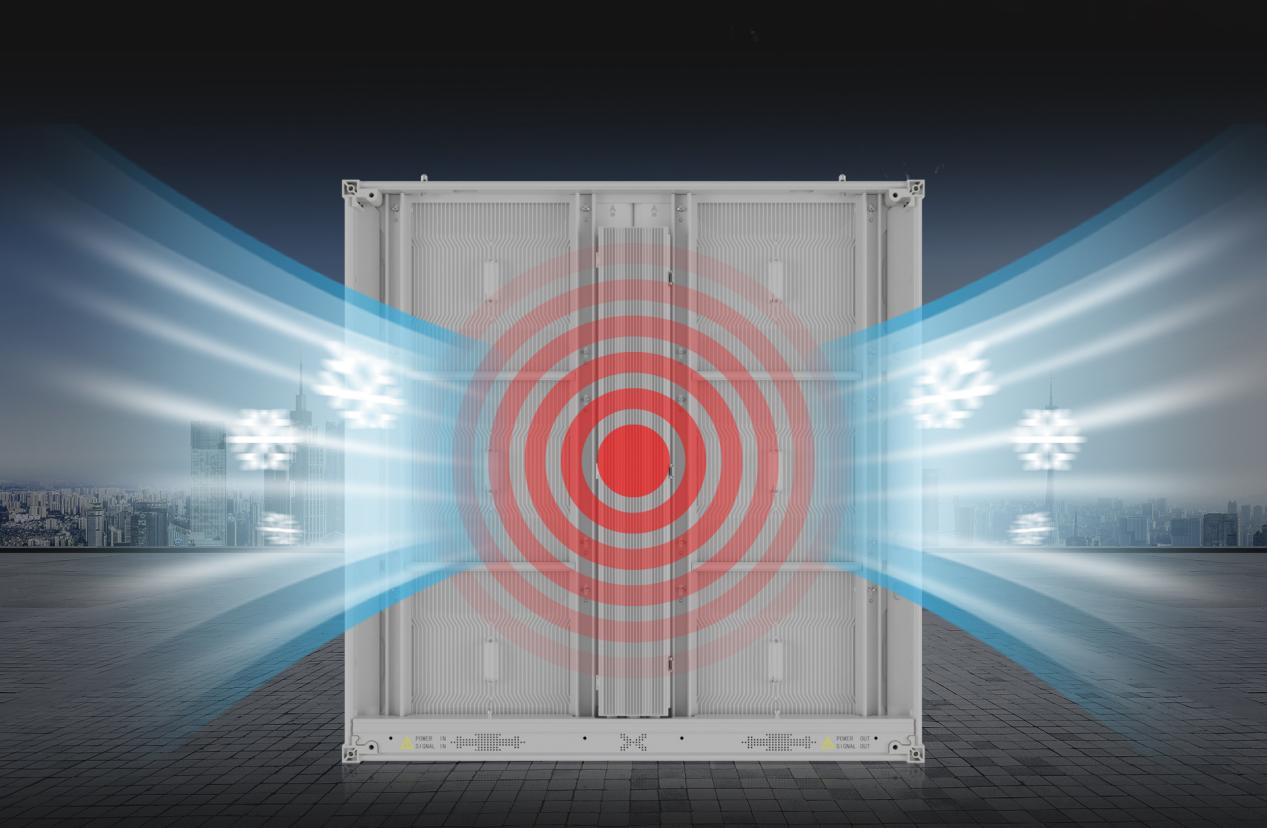

Built with high thermal conductivity aluminum materials, TA Series improves heat transfer efficiency and accelerates heat dissipation. The optimized thermal design helps reduce component stress and extends display lifespan during continuous operation.
TA Series integrates power and signal cables with aviation-grade connectors, improving installation efficiency and reducing cable complexity. The optimized design helps achieve a cleaner and more reliable installation process.

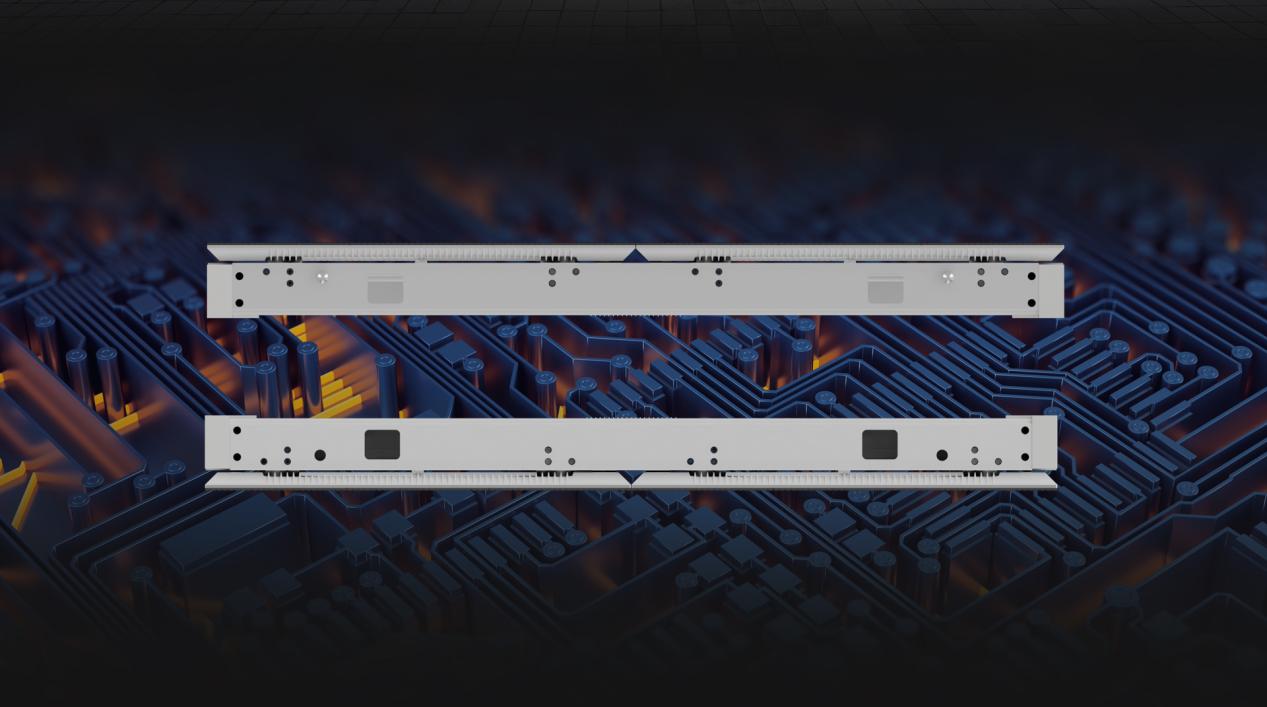

Supporting dual receiving cards and dual power supplies, TA Series provides additional protection for both signal and power systems. The redundant design helps maintain stable operation and minimizes interruptions in critical outdoor applications.

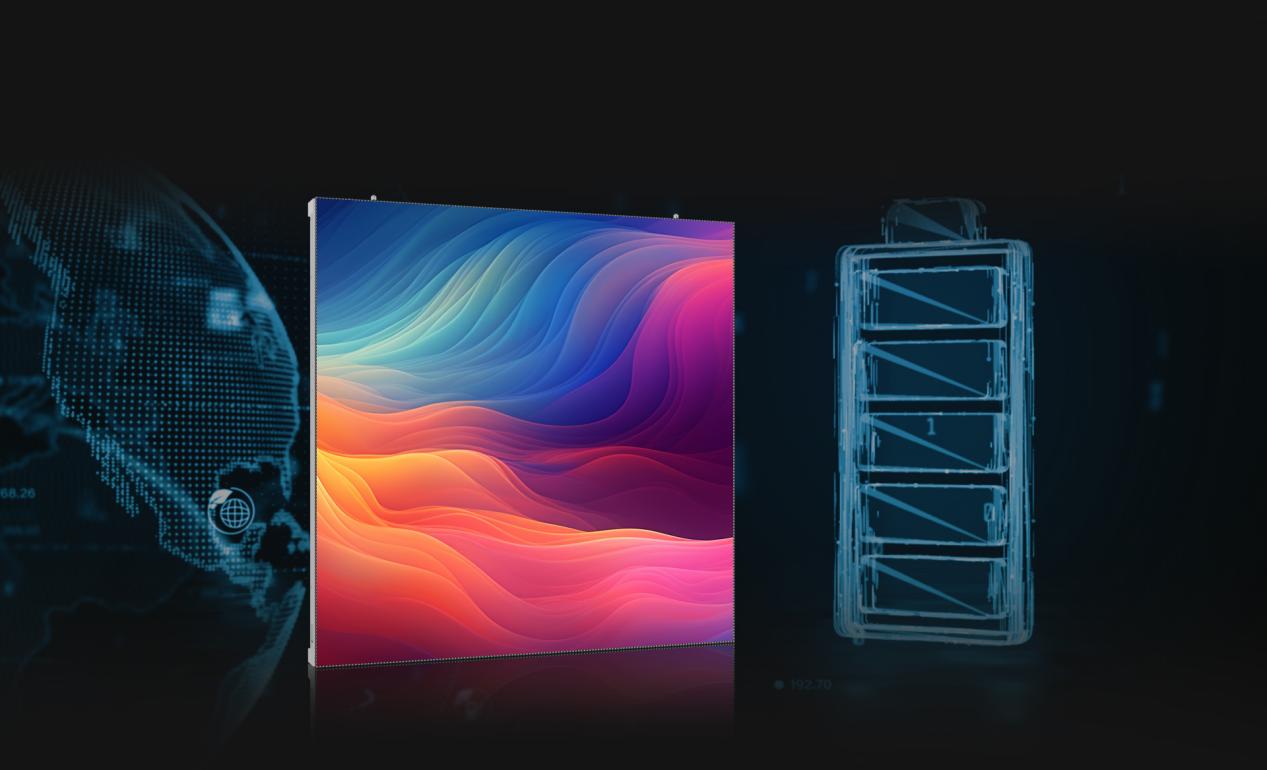

TA Series adopts advanced common cathode power supply technology to optimize energy efficiency and reduce power consumption. The improved power management design helps lower operating costs while maintaining excellent display performance.

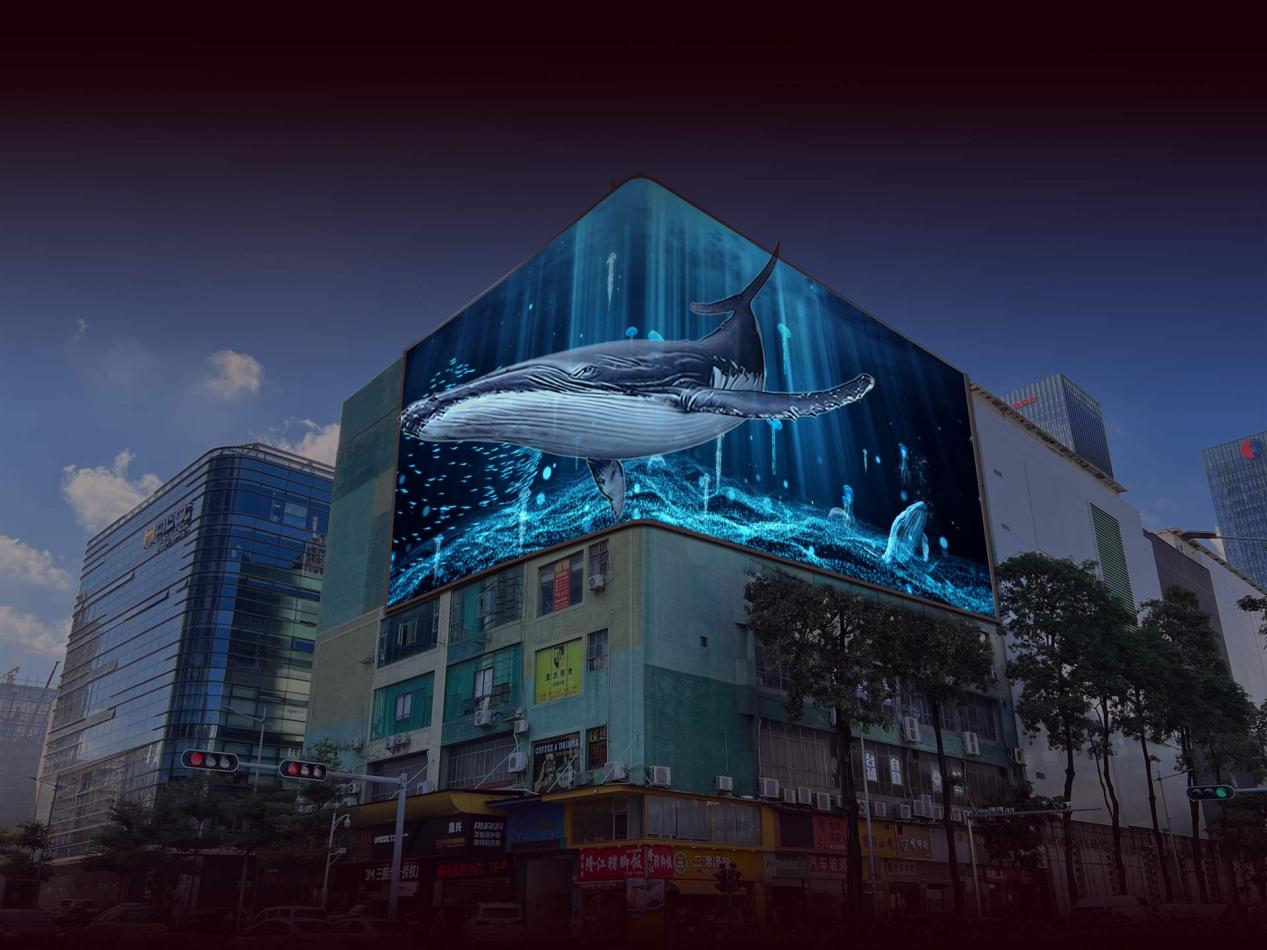

TA Series supports multiple installation methods to meet different project requirements. Its adaptable design allows easier integration into various outdoor environments and structural conditions.
Technical parameters and engineered specifications.
| Parameter / Model | T440A | T570A | T660A | T800A | T1000A |
|---|---|---|---|---|---|
| Pixel Pitch | 4.444 | 5.714 | 6.667 | 8 | 10 |
| Cabinet Size | 960x960mm | ||||
| Cabinet Material | Aluminum | ||||
| Weight | 24kg | ||||
| Contrast Ratio | 6000:01:00 | ||||
| Viewing angle | 140°/100° | ||||
