Built for professional indoor use, the F-Board4 Std simplifies moving and installing large LED displays. Its inward-folding frame fits elevators and tight spaces without full disassembly, while the built-in lift system offers adjustable heights with collision detection for safe operation. Boasting Android system, wireless connectivity, smart controls, premium audio and multi-source input, this all-in-one display is ideal for meetings and presentations.

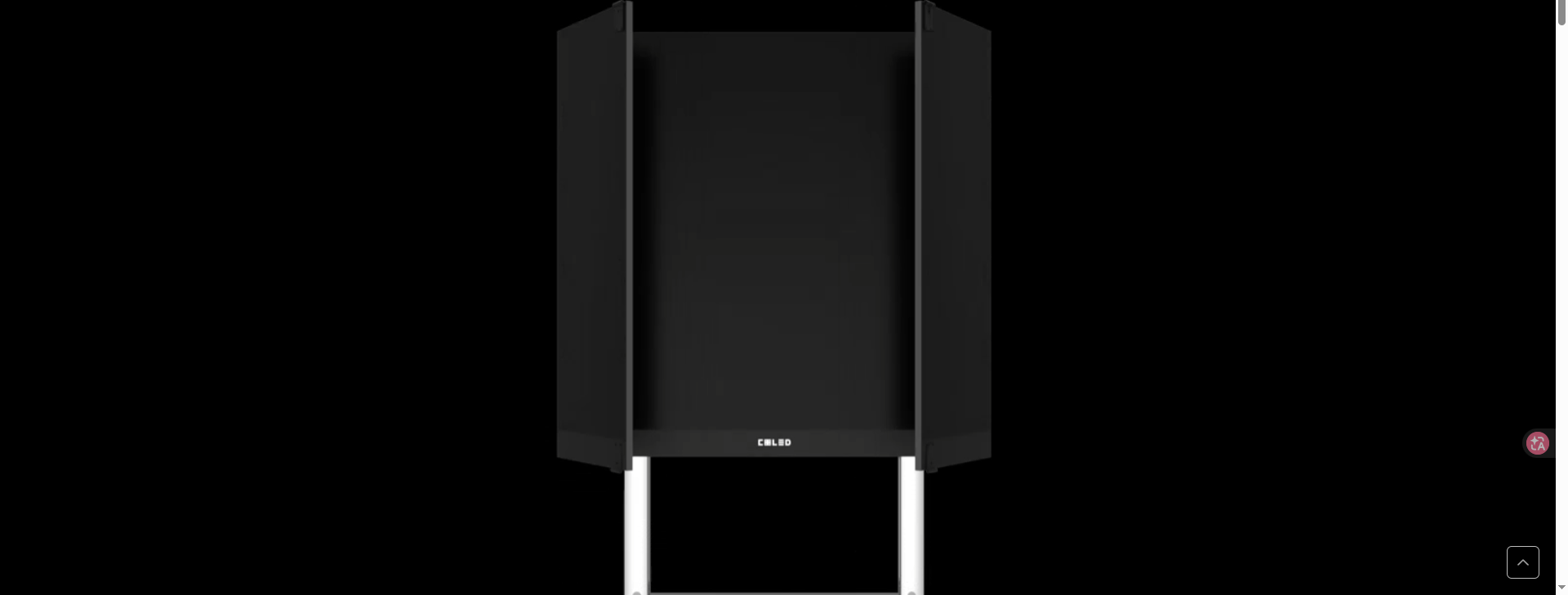

F-Board4 Std features an inward-folding design that makes a large LED display easier to transport and set up. The screen can be moved directly in its folded state, allowing it to pass through elevators and other confined spaces. With a lifting and movable structure, two people can complete the setup from flight case to operation in around two minutes, helping reduce installation time and effort.

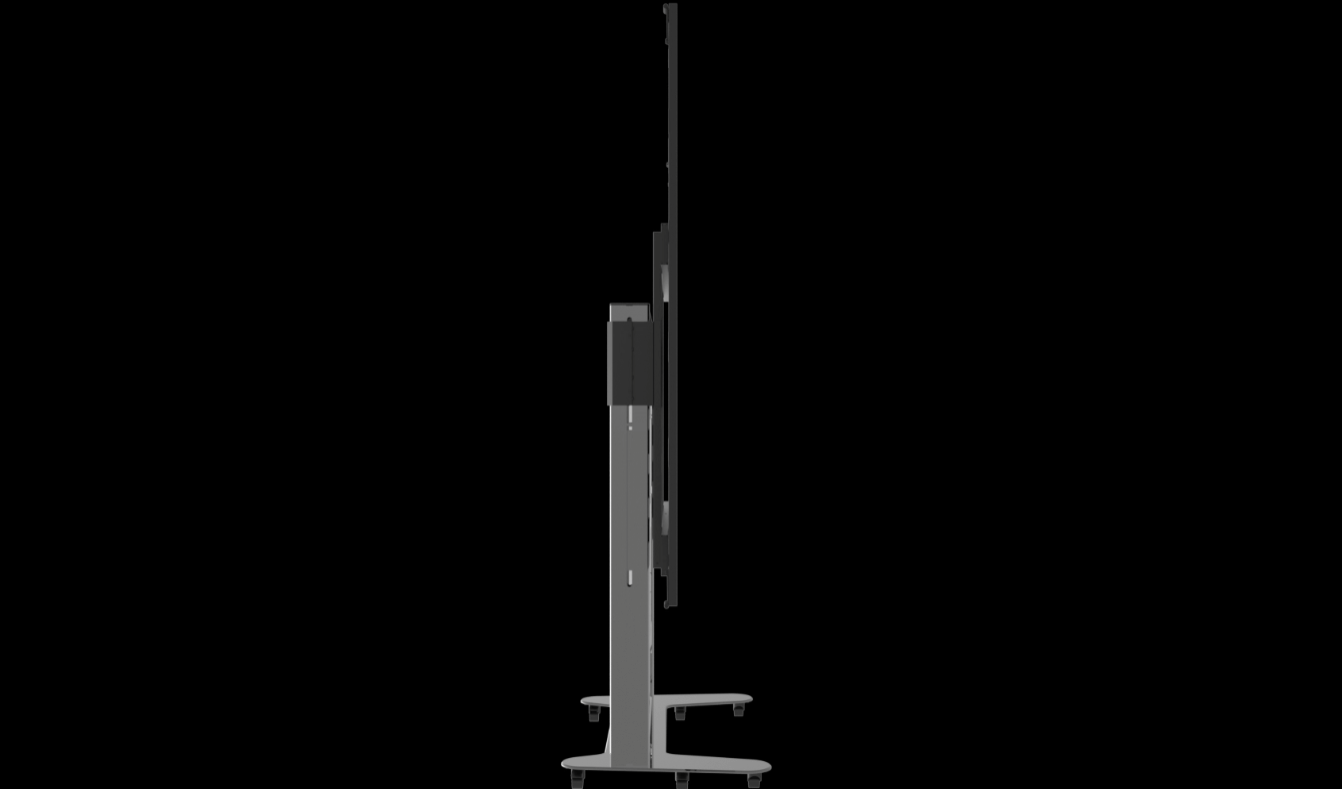

The built-in lifting system provides up to 65 cm of height adjustment to suit different viewing environments. During operation, the collision sensing system detects unexpected external force and automatically stops the lift, helping prevent damage and making height adjustment safer and more reliable.
F-Board4 Std combines the LED display, Android system, control functions, and meeting features in one integrated solution. It supports video conferencing and mobile device interaction, while the built-in advanced audio system provides clear sound for meetings.
An AI-powered processor works together with advanced color and image processing technologies to enhance picture detail, color reproduction, and overall image quality. With support for 2K/4K HDR content, F-Board4 Std delivers clear and vivid visuals for high-resolution content.
The IoT controller brings key display functions together in one convenient interface. Users can wirelessly project content, start screen sharing with a single tap, switch layouts, and change display scenes without having to manage multiple control devices.
F-Board4 Std supports multi-channel signal processing with PIP and PBP modes, allowing up to four sources to be displayed on the same screen and up to nine devices can also connect wirelessly for content sharing.
Technical parameters and engineered specifications.
| Product model | F151B4S-135 |
|---|---|
| Pixel Pitch（mm） | 1.5625 |
| Resolution（W*H) | 1920*1080 |
| Viewing Area（W*H） | 3000*1687.5 |
| Weight | 225kg |
| Refresh Rate（Hz） | 2880-3840 |
| Contrast | 6000:01:00 |
| Viewing Angle（H/V) | 160°/160° |
Get instant quotations, project sizing, and technical datasheets within 24 hours.
