High Performance LED Display PlatformProject Engineering Overview
| Product Model | CLT Fine-Pitch Indoor Display (P3) |
|---|---|
| Screen Size/Scale | 415 m² Immersive 6-Sided Cube |
| Installation Location | China (Yantai, Shandong) |
| Application Scenario | Retail & Commercial |
Project Background & Objective
Situated in the coastal scenic destination of Yangma Island in Yantai, Shandong, the newly developed Yangma Island Visitor Center required an iconic visual centerpiece. The goal was to create a fully immersive spatial experience that transports tourists into maritime culture and island panoramas the moment they step into the reception atrium.

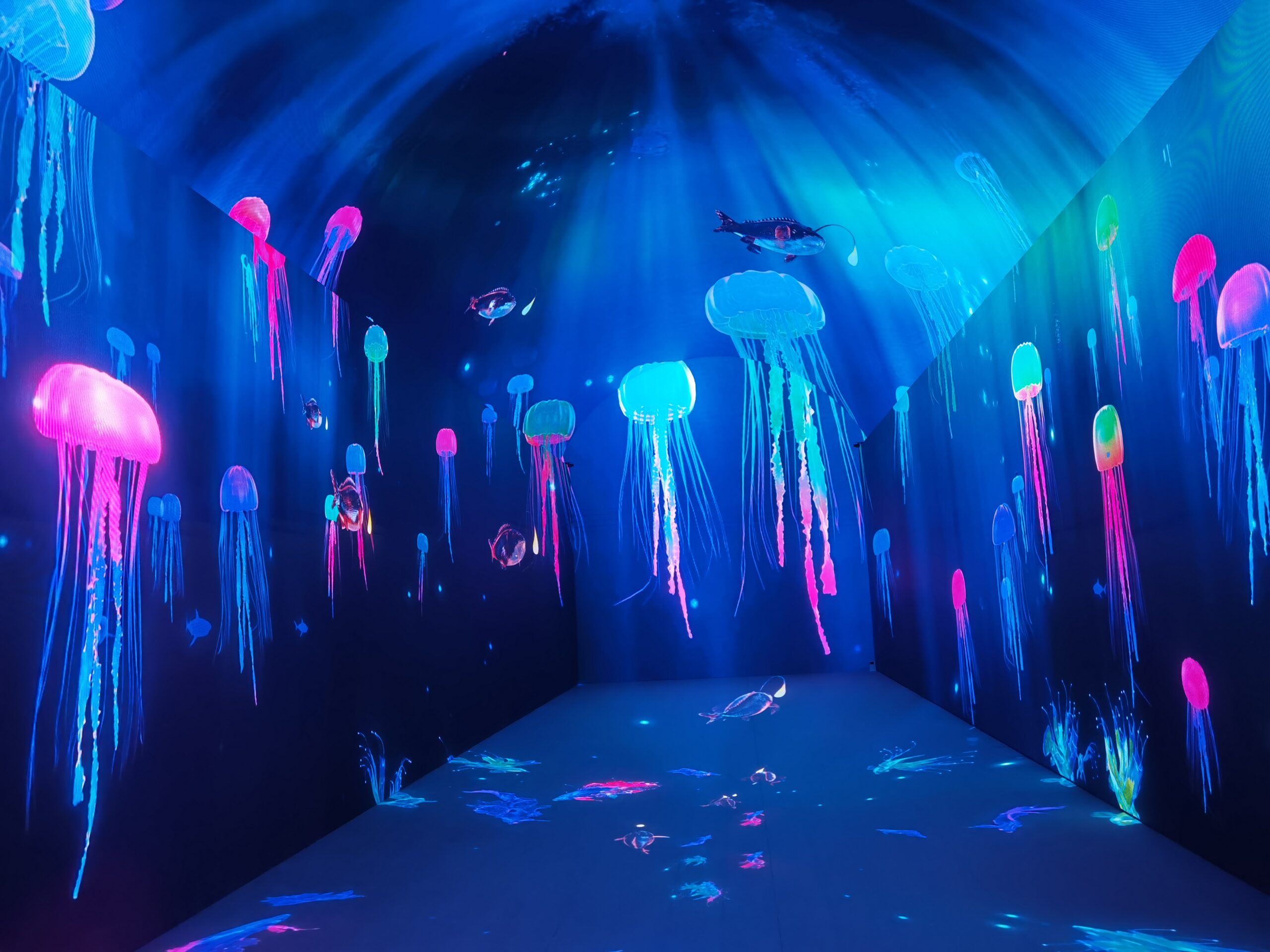

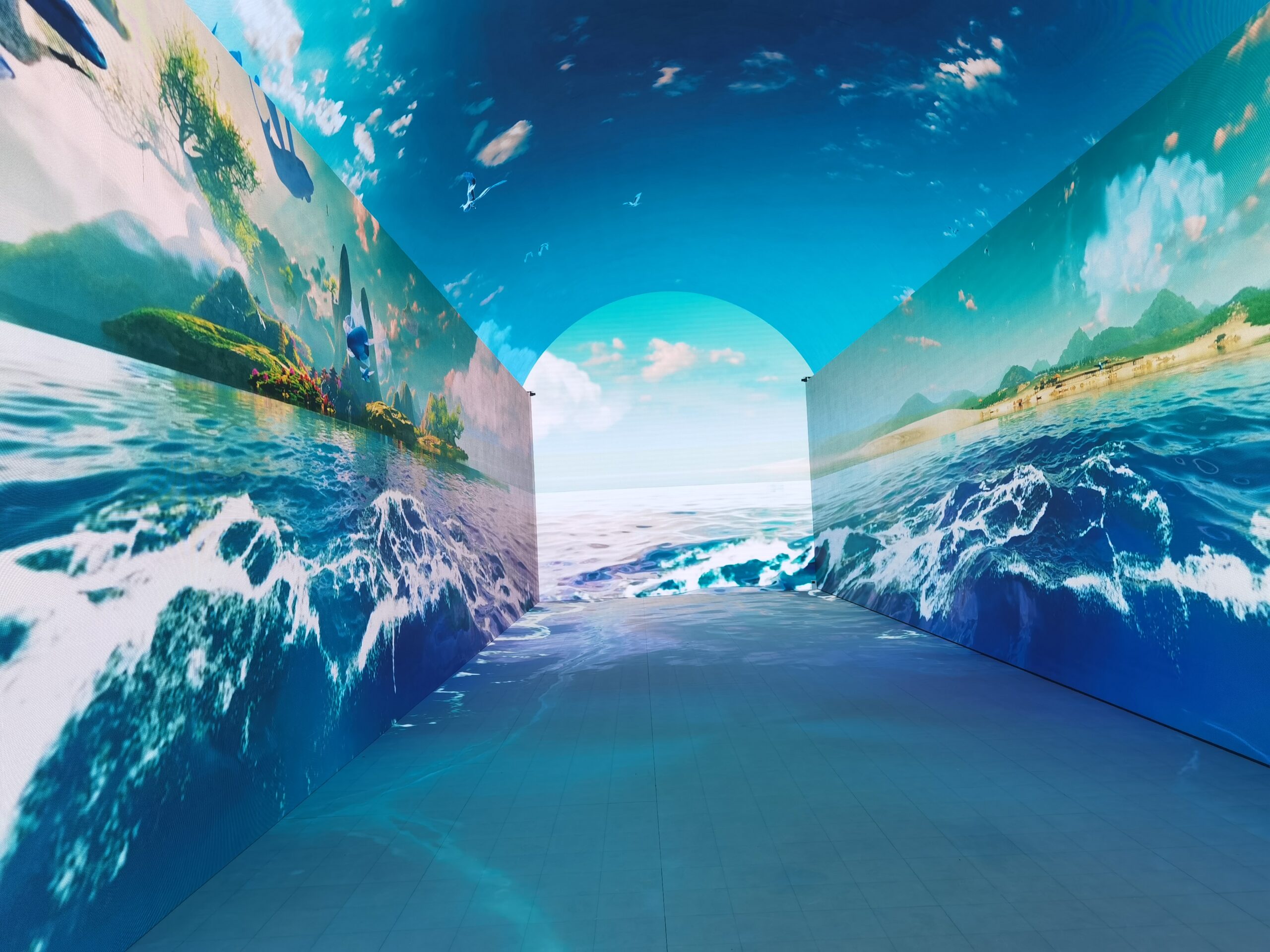

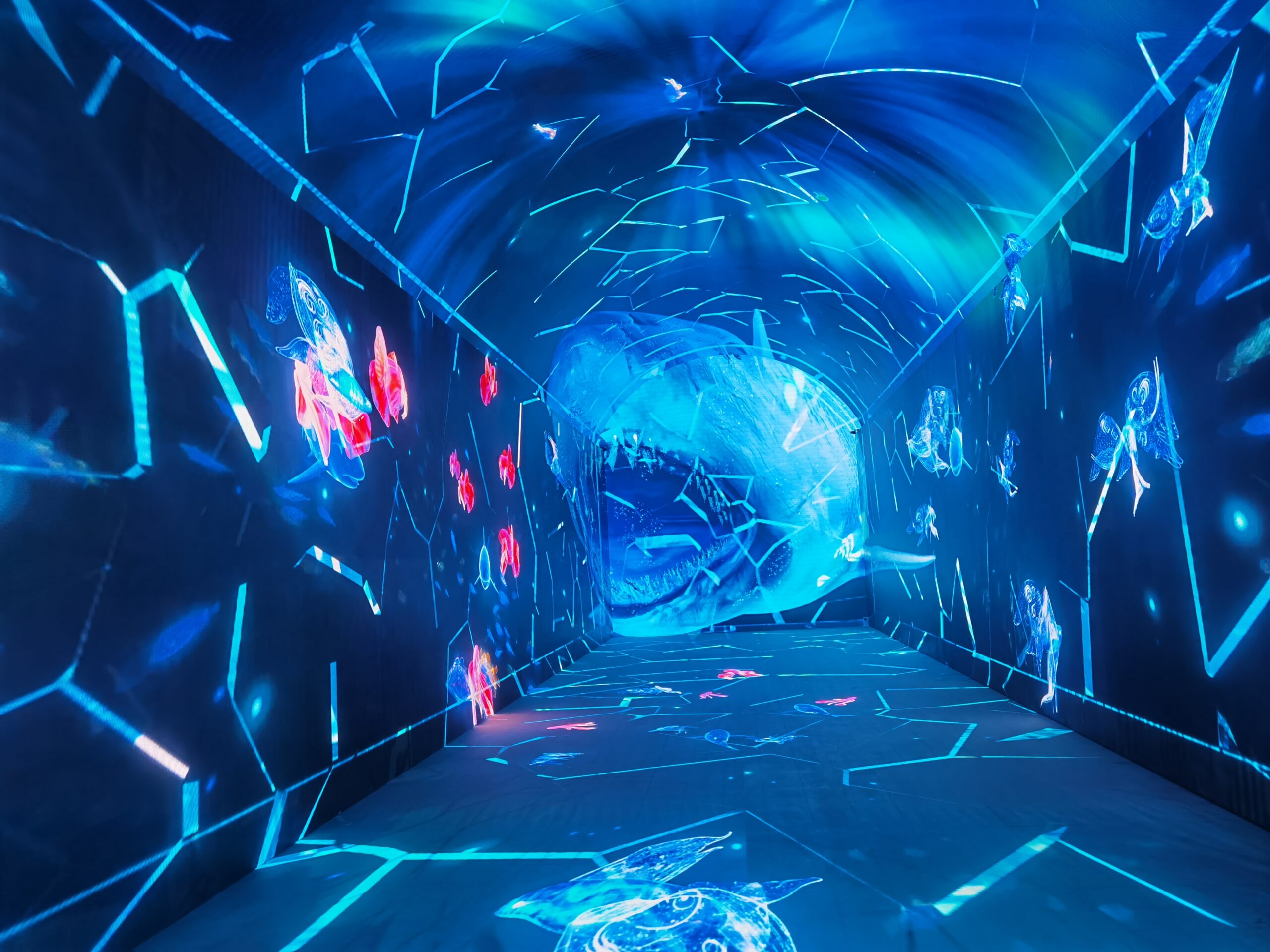

415m² 6-Sided Spatial Cube Engineering
To realize an all-encompassing visual environment, CLT engineered a state-of-the-art six-sided immersive LED cube spanning a total display area of 415 square meters. Utilizing high-precision P3 fine-pitch modules, the installation delivers seamless edge transitions across all facets, eliminating perceptual boundaries between vertical walls, ceiling, and floor perspectives.
Advanced image processing and synchronized multi-channel playback ensure smooth 60fps rendering, creating a true naked-eye 3D perceptual voyage for visitors.
Durable Coastal Operation & Thermal Reliability
Given the marine coastal environment, CLT’s engineering team applied moisture-resistant conformal coatings and anti-corrosive cabinet treatments. The structure features optimized silent heat dissipation and front-accessible maintenance modules, ensuring uninterrupted performance throughout peak tourist seasons.
Before and After Comparison
| Dimension | Before: Traditional Display Setup | After: CLT High-Performance LED Solution |
|---|---|---|
| Display Layout | Fragmented multi-panel or projection with bezels | One seamless ultra-wide high-contrast LED canvas |
| Visual Continuity | Distracting seams, low ambient light contrast, washed out colors | Zero seam lines, high brightness, 110% NTSC studio color fidelity |
| Operation & Setup | Complex cabling, slow multi-source switching, frequent calibration | Plug-and-play architecture, wireless cluster casting, instant scene recall |
| Space Aesthetics | Bulky equipment encroaching interior architectural lines | Clean, ultra-slim profile seamlessly integrated with room architecture |
